This page is community maintained. The information is intended for PC simulator navigation or reference.
Always use approved charts for navigation.

KMFDMansfield Lahm Rgnl

Mansfield, Ohio, United States (44903)

(C)

Radio Freq.

Runways

Charts

Lat/Lng:	40° 49' 17.1" N / 82° 30' 59.9" W 40.821417 / -82.516639
Elevation:	1297'ft / 395mMSL
Declination:	W006°
ID / ICAO:	KMFD
FAA:	MFD
Runways:	2
Longest:	14-32 Asphalt 2,736m / 8,976ft

Controlled:	Yes

(Edited 2014-05-21) [ Edit disabled ]

Airport Radio Frequencies

ATIS:	125.3
CTAF:	119.8
UNICOM:	122.95
Ground:	121.8
Tower:	119.8
Approach:	124.2, 127.35

[ Edit disabled ]

Nearby VORs <50NM

MANSFIELD VORTAC		5.1 NM
MFD	freq: 108.80	NW 310°
BUCKEYE VOR		32.0 NM
BUD	109.80	SW 243°
TIVERTON VOR-DME		32.4 NM
TVT	116.50	SE 140°
DRYER VOR-DME		41.4 NM
DJB	113.60	NE 26°
SANDUSKY VOR-DME		43.0 NM
SKY	109.20	N 350°
APPLETON VORTAC		46.5 NM
APE	116.70	S 184°

Nearby NDBs

MANNS NDB		5.3 NM
MF	freq: 372	SE 135°
ASHLAND NDB		16.9 NM
AAU	329	NE 54°
SMITHVILLE NDB		35.9 NM
SLW	400	E 84°
TIFFIN NDB		41.0 NM
TII	269	NW 297°
HARRI NDB		45.9 NM
CL	344	NE 38°
DELAWARE MUNI-JIM NDB		48.6 NM
DLZ	215	SW 219°

Runway 14 / 32

Dimensions:	2735.9 x 46m 8976' x 151'ft
Surface:	Asphalt
Edge Lights:	Medium intensity

	Runway 14 [A]	Runway 32 [B]
Heading:	143°MH 137°TH	323°MH 317°TH
Lat: Lng:	40° 49' 59.12"N 82° 31' 41.98"W	40° 48' 54.14"N 82° 30' 22.07"W
ALS:		SALS

[ Edit disabled ]

Runway 05 / 23

Dimensions:	2076 x 46m 6811' x 151'ft
Surface:	Asphalt
Edge Lights:	Medium intensity

	Runway 05 [A]	Runway 23 [B]
Heading:	052°MH 046°TH	232°MH 226°TH
Lat: Lng:	40° 48' 41.56"N 82° 31' 29.3"W	40° 49' 27.4"N 82° 30' 24.73"W
TDZ:		Yes, lighted

[ Edit disabled ]

User Notes and Comments

Ad:

Airport Charts[S:2102] 0901Z 02/25/21 - 0901Z 03/25/21 d -TPP

AIRPORT DIAGRAM

TAKEOFF MINIMUMS

ALTERNATE MINIMUMS

STAR Charts0901Z 02/25/21 - 0901Z 03/25/21 d -TPP

(IAP) Instrument Approach Procedures0901Z 02/25/21 - 0901Z 03/25/21 d -TPP

ILS OR LOC RWY 32	RNAV (GPS) RWY 05	RNAV (GPS) RWY 14	RNAV (GPS) RWY 23	RNAV (GPS) RWY 32
HI-VOR/DME OR TACAN RWY 14	VOR RWY 14	VOR RWY 32	NDB RWY 32

Departure Procedures0901Z 02/25/21 - 0901Z 03/25/21 d -TPP

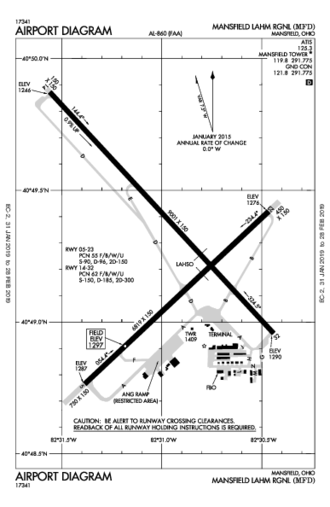

Airport Diagram

Download PDF - 0901Z 02/25/21
